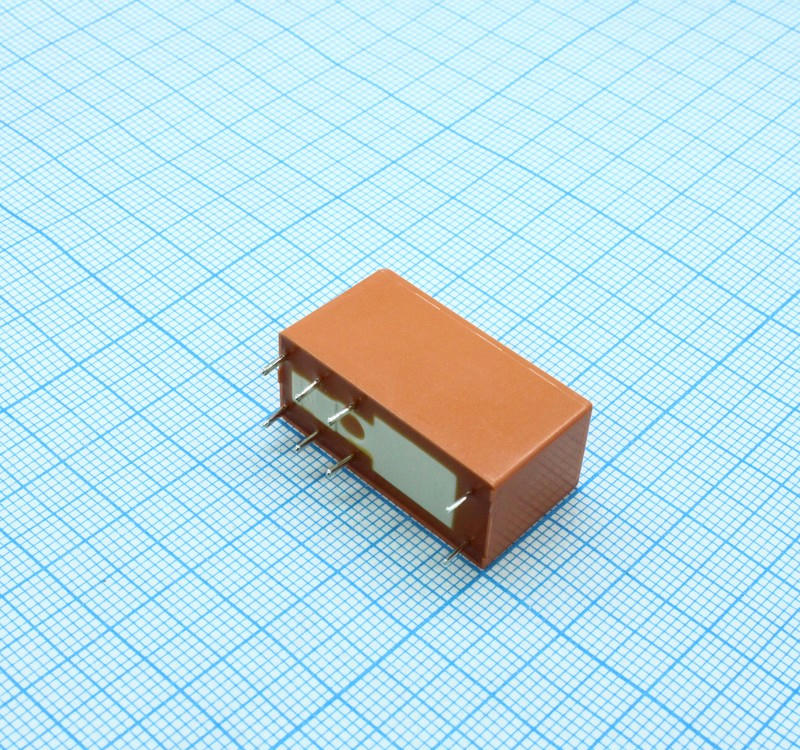

1-1649329-3

RELAY, DPDT, 250VAC, 8A; Contact Configuration:DPDT; Coil Voltage:12VDC; Contact Current:8A; Product Range:RT2 monostable Series; Relay Mounting:Through Hole; Coil Type:Non Latching; Contact Voltage VAC:250VAC; Relay Terminals:Solder; Contact Voltage VDC:-; Contact Material:Silver Nickel; Coil Resistance:360ohm; SVHC:No SVHC (15-Jan-2019); Approvals & Standards:CSA, UL, VDE; Coil Voltage VDC Nom:12V; Contact Current Max:15A; Contact Voltage AC Nom:250V; Contact Voltage DC Nom:30V; Current Rating:8A; Dielectric Voltage Coil to Contact:5000V; Dielectric Voltage Contact to Contact:1000V; External Depth:12.7mm; External Height:15.7mm; External Width:29mm; No. of Pins:8Pins; Nom Operating Power:400mW; Operating Temperature Max:85°C; Operating Temperature Min:-40°C; Operating Time:8ms; Relay Type:Power — General Purpose; Release Time:3ms
